MR-2048

触摸老虎控台

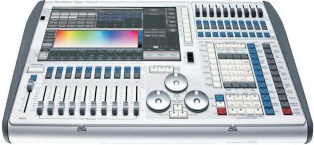

Tiger Touch Console

·采用功能强大的泰坦操作系统，9.1、10.1、11.1三合一系统版本。

·英特尔( Intel)酷睿15双核处理器，1206固态硬盘，4G运行内存。

·内置一个15.6寸电容触摸屏，亮度和可视角度更好，可扩展一个带触摸的高清显示屏

·标准8DMX输出端口和MIDI接口，4096个DMX通道。并可扩展至64个DMX输出口，32768DMX通道

·内置UPS电源，断电可供电30分钟左右(可以定制断电可工作时间)防止突然断电系统损坏货丢失程序，可扩展

为1到5小时特有的无需接外部电源可以开机工作。

·内置图形发生器，且内置效果可以同步。

·控台内置播放器时间码，可以很方便编辑灯光秀。

·10个宏按键，可编辑任何程序。

·20个重放推杆，支持1000个虚拟重放。

·强大的属性控制窗口， CMY RGB拾色板系统

·支持涂鸦式手写命名功能，支持Art-Net网络功能

·支持中文菜单显示，且内置多国语言。

·内置数千种灯库，并内置灯库编辑软件，你可以随时在控台上编写灯库!

·内置 Visualiser可视化舞台模拟软件，支持视频，可预编程!

·支持MIDI时间码声光同步功能，也可以在控台里播放音乐发送时间码来控制灯光程序重放

·产品重量：净重14KG，纸箱包装18KG，航空箱包装29KG

·纸箱包装：73.5×63.5×23.5（长宽高）

·航空箱包装：73.5×55.5×31.5

·Adopting the powerful Titan operating system, the 9.1, 10.1, and 11.1 three in one system versions· Intel Core 15 dual core processor, 1206 solid-state drive, 4GB RAM· Built in 15.6-inch capacitive touch screen for better brightness and viewing angle, expandable high-definition display with touch. Standard 8DMXX output port and MIDI interface, 4096 DMXchannels. And it can be expanded to 64 DMA output ports, 32768 DMA channels, and has a built-in UPS power supply. It can provide power for about 30 minutes after power outage (customizable power outage working time) to prevent sudden power outage, system damage, and loss of program. It can be expanded to 1 to 5 hours of unique power on work without external power supply· Built in graphics generator, and the built-in effects can be synchronized· The control panel has a built-in player time code, which makes it easy to edit the light show· 10 macro buttons, can edit any program· 20 replay push rods, supporting 1000 virtual replays· Powerful attribute control window, CMY RGB color palette system, supporting graffiti style handwriting naming function, Art Net network function, supporting Chinese menu display, and built-in multiple languages· Built in thousands of light libraries and built-in light library editing software, you can write a light library on the console at any time!

·Built in Visualiser visual stage simulation software, supports video, and can be pre programmed!

·Supports MIDI time code sound and light synchronization function, and can also play music and send time codes in the console to control the playback of lighting programs. Product weight: net weight 14KG, cardboard box packaging 18KG, aviation box packaging 29KG. Carton packaging: 73.5 x 63.5 x 23.5 (length, width, height). Aviation box packaging: 73.5 x 55.5 x 31.5
