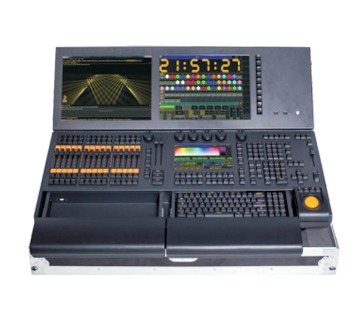

MR-A2

Ma2控制台

MA Control

·输入电压：110V~220V 50~60Hz，内置大功率UPS不间断电源

·内置6个DMX-512输出接口，1个DMX-512输入接口，最大扩展可256DMX输出口。

·一个高灵敏轨迹球内置键盘抽屉

·1个LTC时间码输入接口，1个MIDI时间码输入接口。

·1个主控调光轮，4个属性编码轮，1个主控推杆，2个AB推杆

·30个程序回放推杆，50个程序存储功能键

·4个USB接口，1个音频接口，1个网络接口，2个工作灯接口

·支持舞台3D效果模拟，实时现场模拟

·1个9寸触摸屏

·2个15.4寸电动升降宽屏触摸显示屏。

·显示窗口固定鼠标不可拖动

·支持物理按键关闭窗口运行其他灯光软件

·9寸屏幕下X1-X20 User1 User2按键LED支持跟程序同步亮灯

·支持Art-net网络扩展至256域，无需NPU就可全部输出信号

·可外接HDMI显示器1个

·产品重量：78KG

·包装尺寸：137.5×85×33（长宽高）

·Input voltage: 110V~220V 50~60Hz, with built-in high-power UPS uninterruptible power supply. Equipped with 6 DMX-512 output interfaces and 1 DMX-512 input interface, it can expand up to 256XL output ports· A highly sensitive trackball with built-in keyboard drawer, 1 LTC time code input interface, and 1 MIDI time code input interface· 1 main control dimming wheel, 4 attribute coding wheels, 1 main control push rod, 2 AB push rods, 30 program playback push rods, 50 program storage function keys, 4 USB interfaces, 1 audio interface, 1 network interface, 2 work light interfaces, supporting stage 3D effect simulation, real-time on-site simulation, and 1 9-inch touch screen

·Two 15.4-inch electric lifting widescreen touch screens· The display window is fixed and the mouse cannot be dragged

·Supports physical buttons to close windows and run other lighting software. On a 9-inch screen, the X1-X20 User1 User2 button LED supports synchronized lighting with the program. It supports Art net network expansion to 256 domains and can output all signals without the need for an NPU. It can be connected to an external HDMI display. Product weight: 78KG. Packaging size: 137.5 x 85 x 33 (length, width, and height)
